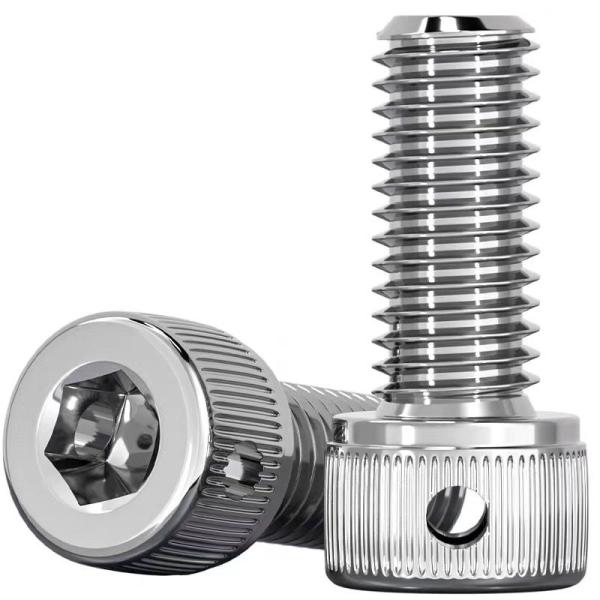

Hex Socket Cap Head Machine Screws With Wire Holes on Head SS304 or SS316

Brand Name : FLRS or OEM

Model Number : FLRS-S005

Certification : ISO9001

Place of Origin : China

MOQ : 1 piece

Price : USD0.1-2/PC

Payment Terms : T/T， L/C， Western union， paypal

Supply Ability : 100tons/month

Delivery Time : 8-20days

Packaging Details : carton/ plywood cases/plywood pallets

Material : Stainless Steel

Surface : Passivation

Standard : DIN912

Head type : Cylindrical cap

Thread : Full thread

Grade : B8, B8M

Color : Natural

Contact Now

Hex Socket Cap Head Machine Screws With Wire Holes on Head SS304 or SS316

Hexagon socket head screws, also known as hexagon socket bolts, cup head screws, hexagon socket screws, have a hexagon socket head and a cylindrical head. Stainless steel hexagon socket head screws include ordinary stainless steel SUS202, SUS304 and SUS316. The connection strength is relatively high, but the corresponding size of hexagonal wrench must be used to install and remove the screws. Generally used in various machine tools and their accessories.

Basic Info.

Model NO.
FLRS-S005
Connection
Machine Screws
Head Style
Cylindrical head with holes
Standard
DIN
Grade
A2-70 A4-70
Product Name
Hex Socket Cap Head Screws
Drawing
Accept
Sample
Free Sample When It Is in Stock
Thread
UNC, UNF
Service
Custom-Made Service
Color
Natural
Delivery Time
Base on The Quantity
Size Standard
Metric/Inch
Price
Base on The Size, Material, Quantity
Payment Term
EXW, DAP, FOB, CIF, etc.
Quality
100% After Inspection
Non-Standard Sample Time
7 -10 Days
Material Test Certificate
Have
Go-No Go Gauges Test
Yes
Transport Package
Plastic Bags and Cartons
Specification
M2-M16
Trademark
As customer's request
Origin
China
HS Code
7318159090
Product Description
Standard DIN912
Size Diameter M2-16 ; Length 8-150mm
Sample service Free sample but freight cost is paid by customers(when sample is in stock), Otherwise need customer to pay for sample
Material Stainless steel
MOQ 1000 pieces
Finish Plain
Package Plastic bag, Boxes and cartons, Pallets, Customized
Price terms EXW, FOB, CIF, etc.
Payment terms T/T, L/C etc.
Product Details

1.Drawing

Hex Socket Cap Head Machine Screws With Wire Holes on Head SS304 or SS316
Made from stainless steel, these screws have good chemical resistance and may be mildly magnetic. Length is measured from under the head. Fine threads are closely spaced to prevent loosening from vibration. They are not compatible with coarse threads.

2.Size
Screw Thread d M1.4 M1.6 M2 M2.5 M3 M4 M5 M6 M8 M10 M12 (M14)
P PitchCoarse
thread		 0.3 0.35 0.4 0.45 0.5 0.7 0.8 1 1.25 1.5 1.75 2
b Ref. 14 15 16 17 18 20 22 24 28 32 36 40
dk plain head
max		 2.6 3 3.8 4.5 5.5 7 8.5 10 13 16 18 21
knurled heads
max		 2.74 3.14 3.98 4.68 5.68 7.22 8.72 10.22 13.27 16.27 18.27 21.33
min 2.46 2.86 3.62 4.32 5.32 6.78 8.28 9.78 12.73 15.73 17.73 20.67
da max 1.8 2 2.6 3.1 3.6 4.7 5.7 6.8 9.2 11.2 13.7 15.7
ds max 1.4 1.6 2 2.5 3 4 5 6 8 10 12 14
min 1.26 1.46 1.86 2.36 2.86 3.82 4.82 5.82 7.78 9.78 11.73 13.73
e min 1.5 1.73 1.73 2.3 2.87 3.44 4.58 5.72 6.86 9.15 11.43 13.72
k max 1.4 1.6 2 2.5 3 4 5 6 8 10 12 14
min 1.26 1.46 1.86 2.36 2.86 3.82 4.82 5.7 7.64 9.64 11.57 13.57
s Nominal Size 1.3 1.5 1.5 2 2.5 3 4 5 6 8 10 12
min 1.32 1.52 1.52 2.02 2.52 3.02 4.02 5.02 6.02 8.025 10.025 12.032
max 1.36 1.56 1.56 2.06 2.58 3.08 4.095 5.14 6.14 8.175 10.175 12.212
t min 0.6 0.7 1 1.1 1.3 2 2.5 3 4 5 6 7
w min 0.5 0.55 0.55 0.85 1.15 1.4 1.9 2.3 3 4 4.8 5.8

3. pictures

Hex Socket Cap Head Machine Screws With Wire Holes on Head SS304 or SS316

Hex Socket Cap Head Machine Screws With Wire Holes on Head SS304 or SS316

Hex Socket Cap Head Machine Screws With Wire Holes on Head SS304 or SS316

Hex Socket Cap Head Machine Screws With Wire Holes on Head SS304 or SS316
